Modifications for the X-10 Lamp Module
Updated: 09/10/03
Disabling Local Control/Current Sensing Momentary Operation Modification --- More coming soon! ---

Disabling Local Control | Momentary operation | More coming soon
WARNING:  Performing these modifications are done at your own risk.  I will not be held liable for any issues that arise from performing such modifications.


The LM-465 Lamp Module

I have used these Lamp Modules for many years. In fact, they are one of the first X-10 modules I fiddled around with! Below are a few modification I had collected over the years and others that I devised myself.


Modification to disable local control/current sensing

(You can refer to the LM-465 Lamp Module schematic for this modification)

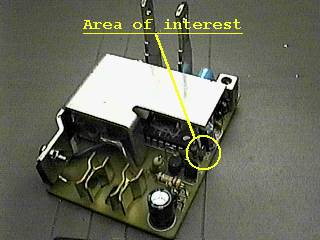

Disassemble the module

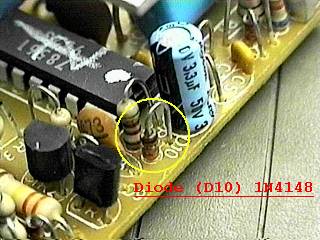

Locating 1N4148 Zener Diode (D10)

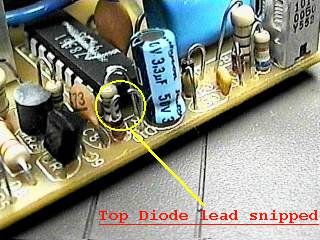

Snipping top lead of diode to open connection
(MORE INFO COMING SOON!)


Modification for momentary operation of the Lamp module

(You can refer to the LM-465 Lamp Module schematic for this modification)

Remove 330K resistor
(MORE INFO COMING SOON!)


More coming soon!

(You can refer to the LM-465 Lamp Module schematic for this modification)
