MS-12/13A Occupancy Sensor Modifications
X-10 Spotlight Modifications
How to make that X-10 Wall Switch locally dimmable
Notes on building an X-10 Phase Coupler
LM-465 Lamp Module Modifications
AM-486 Appliance Module Modifications

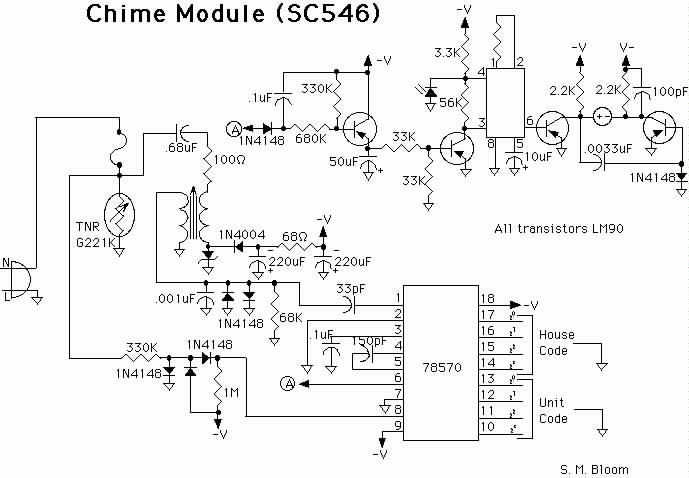

SC-546 Chime Module Modifications
X-10 Schematics Collection
MS-12A Modifications | Modification to the X-10 Spotlight | Local Dim Capability | About Phase Couplers
Lamp Module Modifications | Appliance Module Modifications | Chime Module Modifications | Schematics
WARNING:  Performing these modifications are done at your own risk.  I will not be held liable for any issues that arise from performing such modifications.
Quick jumps to X-10 Schematics

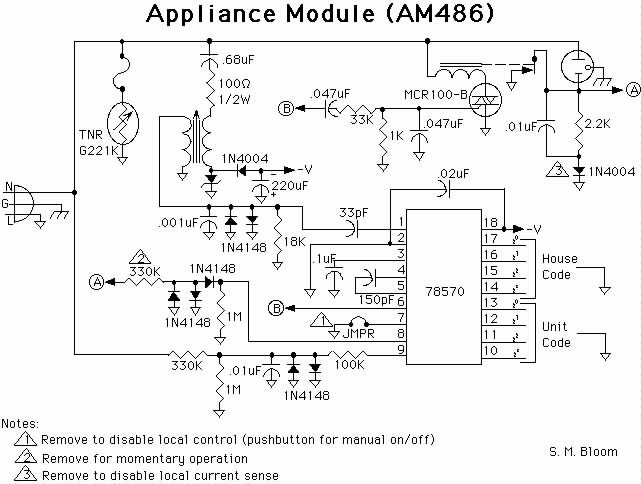

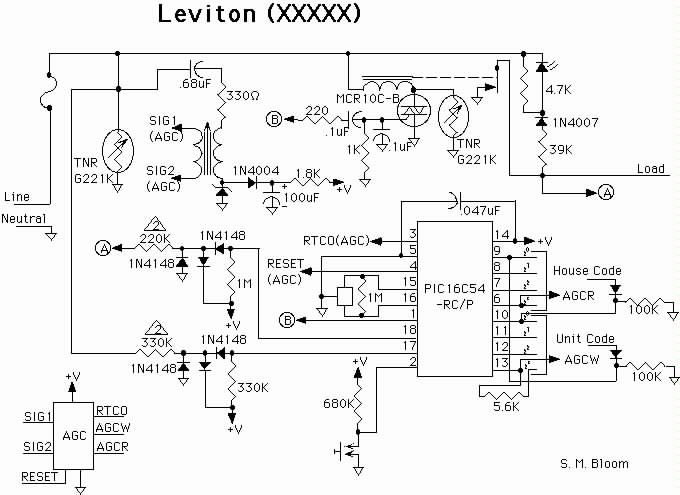

The AGC style appliance module The AM486 appliance module

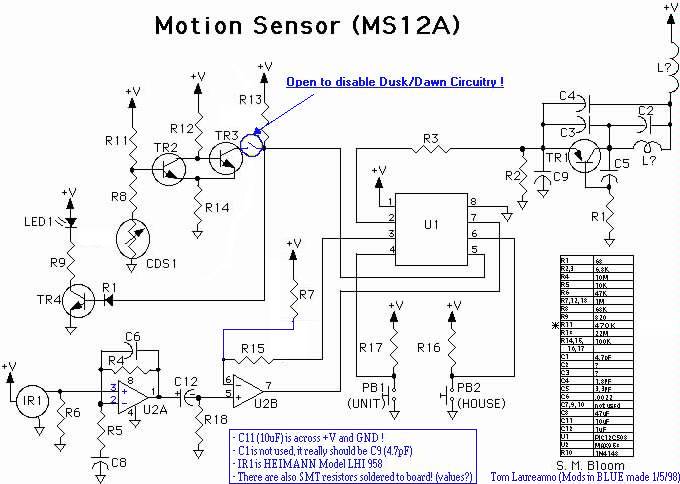

The LM465 Lamp Module The MS-12A Occupancy Sensor

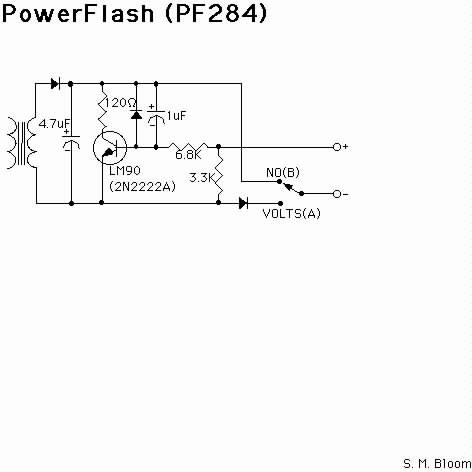

The PF284 Power Flash Module (front end) The SC546 Chime Module
The WS467 Wall Switch

...
